로미오 보드는 아두이노 우노와 같은 ATmega328 칩을 사용하는 마이크로컨트롤러 보드로 2개의 DC 모터 드라이버와 무선통신 모듈 소켓이 내장되어 있어서 블루투스 모듈을 위해 회로를 구성하지 않고 소켓을 통해 블루투스 모듈을 연결할 수 있습니다.


INTRODUCTION

Romeo is an All-in-One Arduino compatible microcontroller especially designed for robotics applications from DFRobot. It benefits from the Arduino open source platform, it is supported by thousands of open source codes, and can easily be expanded with your Arduino-comaptible shields. The integrated 2 way DC motor driver and wireless socket allows you to start your project immediatly without the need for an additional motor driver or wirless shield.

Version History


Romeo v1.1

The Romeo v1.1 behaves like standard Arduino Uno which means you can program it directly from the Arduino IDE. This v1.1 version has changed the position ICSP pins to make the Romeo compatible with the USB host shield and the Ethernet shield. That means now the Romeo could work perfectly with most Arduino shields.


The Romeo v1.1 differs from the preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter. All the pins of the new Romeo use colored pin headers(FIT0084-R,FIT0084-B,FIT0084-G).


Romeo v1.2

Changed on analog wiring piles to be fully compatible with DFRobot v2 sensor series.



Note: We commonly use Green for digital I/O; Blue for Analog I/O; Red for Power/Voltage

DOCUMENTS

·         Product wiki

·         Romeo schematic (Compatible with both v1.1 and v1.2)

·         Romeo Layout

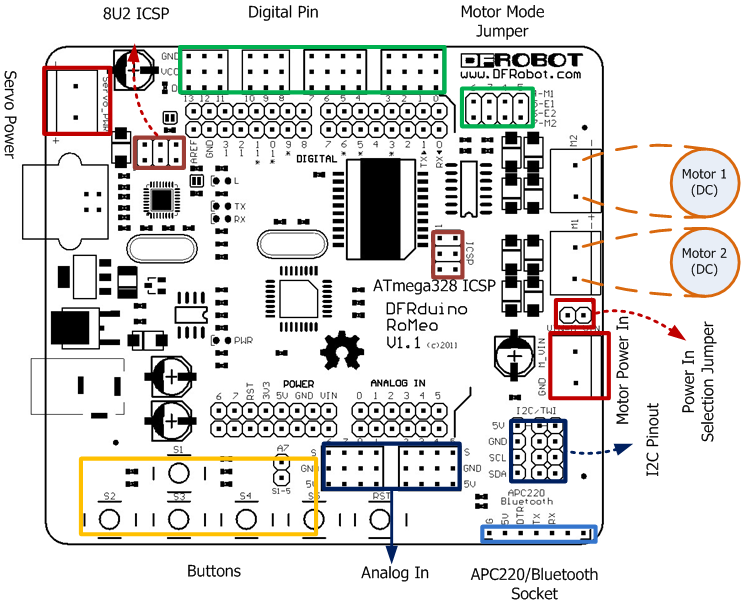

·         Romeo pinout Diagram

·         Romeo Tutorial French Version

·         Getting Started with DFRduino Romeo (German Language)

·         Arduino RC Hack based on Romeo

·         Hongkong biped robot using Romeo

·         Schematic (V1)

SHIPPING LIST

·         Romeo-All in one Controller x1



  • Atmega 168/328
  • 14 Channels Digital I/O
  • 6 PWM Channels (Pin11,Pin10,Pin9,Pin6,Pin5,Pin3)
  • 8 Channels 10-bit Analog I/O
  • USB interface
  • Auto sensing/switching power input
  • ICSP header for direct program download
  • Serial Interface TTL Level
  • Support AREF
  • Support Male and Female Pin Header
  • Integrated sockets for APC220 RF Module and DF-Bluetooth Module
  • Five I2C Interface Pin Sets
  • Two way Motor Drive with 2A maximum current
  • 5 key inputs
  • DC Supply:USB Powered or External 7V~12V DC。
  • DC Output:5V /3.3V DC and External Power Output
  • Dimension:90x80mm
