아두이노 호환 Light Disc with 7 SMD RGB LED
판매가격 : 13,200
상품코드 :[3544]JOHN
배송일 :당일발송
제조사 :DFRobot
브랜드 :DFRobot [브랜드몰 바로가기]
남은수량 : 1개
구매수량 :
총 금액 :
추가&대량구매 요청 053-588-4080

7개의 RGB LED가 탑재되어 있고, 프로그램을 통해 자유롭게 패턴을 만들 수 있습니다.



아두이노 소스코드

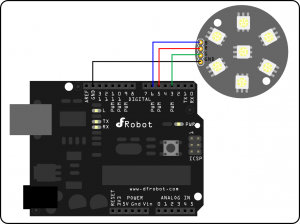

//This sample code use Digital Pin 3,5,6 and GND

// This code only works for V1 version which comes with a soldered cable

// www.dfrobot.com

// Last modified on 26/11/2014



int B = 3; //Connect Blue led to Digital pin 3

int R = 5;//Connect Red led to Digital pin 5

int G = 6;//Connect Green led to Digital pin 6



//Connect the 5V pin of light disc to GND Pin of Arduino





void setup()

{

  pinMode(3,OUTPUT);

  pinMode(5,OUTPUT);

  pinMode(6,OUTPUT);

}



void loop()

{

  analogWrite(B,random(255));

  analogWrite(R,random(255));

  analogWrite(G,random(255));

  delay(80);

}


INTRODUCTION

This fantastic light disc consists of 7 SMD RGB LED.  It illustrates a beautiful color combination much better than traditional RGB led.  You can control the LEDs via the RGB pins. By pulse-width-modulating the pins any color can be created by mixing different amounts of red, green, and blue. Running from a 5V source, these LEDs are painfully bright. With a proper case, a beautiful mood light is just up and running.

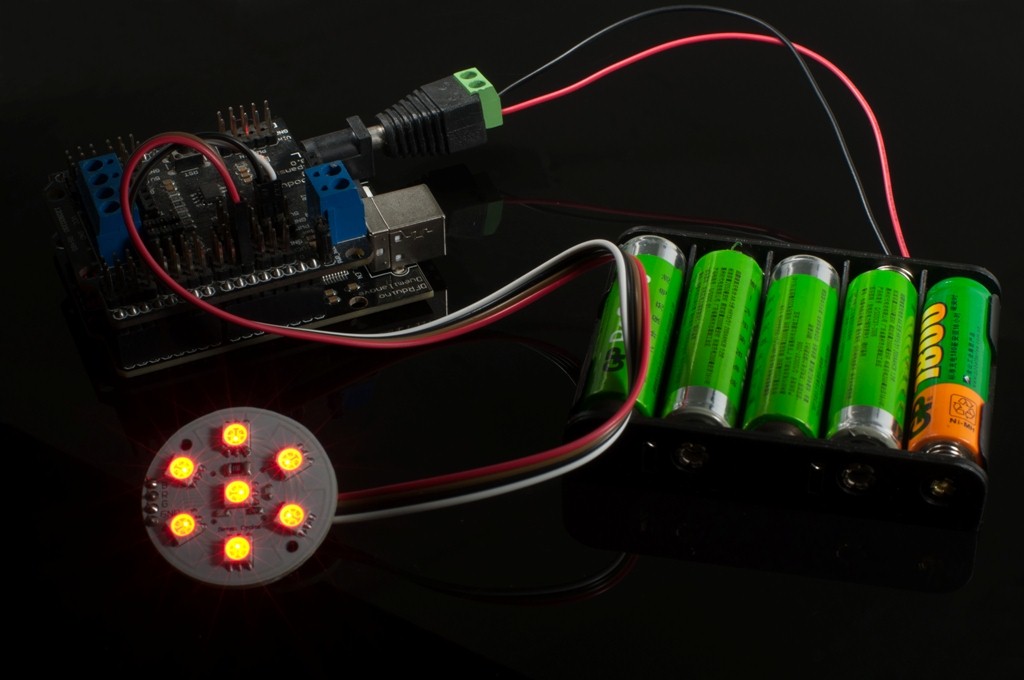

Ideal for Arduino lighting project.   It can be powered by Arduino Digital Pin out with only USB power supply.



It has buildin resistor, it will work flawlessly with Arudino  5V power.

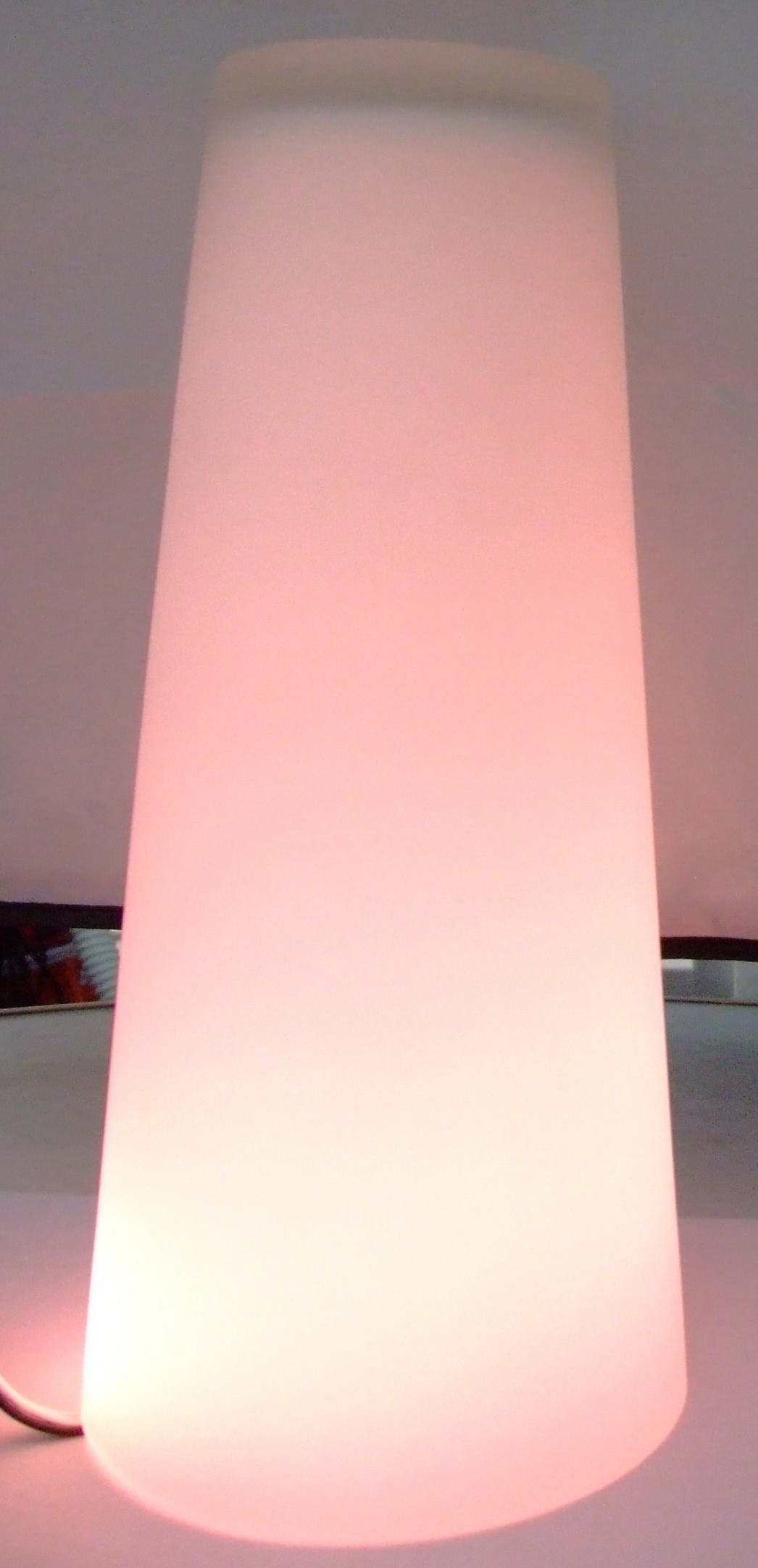

The image above is using this light disc with a glass cover, with proper sensor, you can make your own mood light or music light












SPECIFICATION

·         Power Supply: 5V

·         7 SMD RGB LED

·         6000 mcd



DOCUMENTS

·         Wiki
